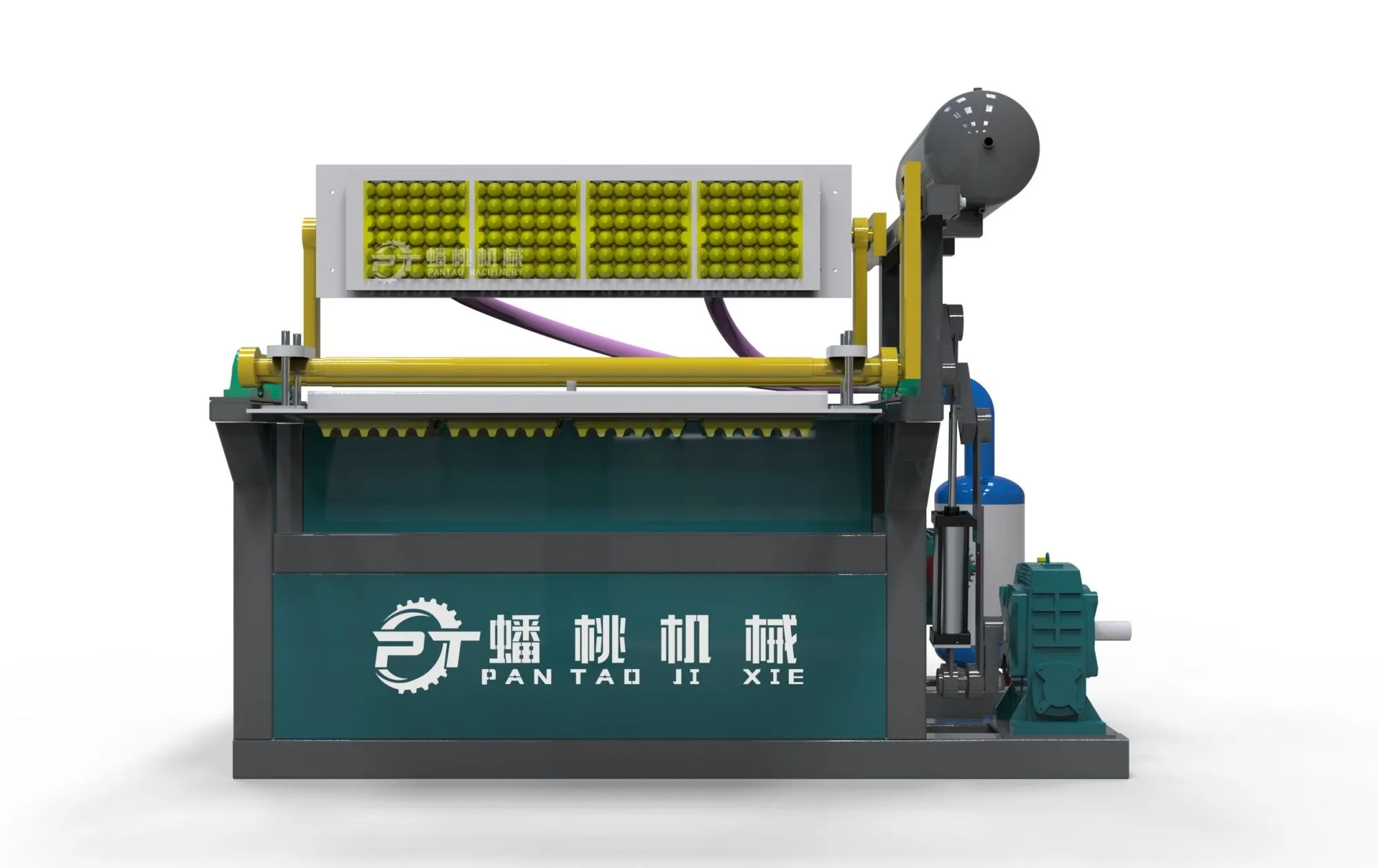

Single Side Pulp Molding Machine

Single-Sided Flip Paper Tray Machine: Composed of a forming surface and a transfer surface, it is suitable for the production of small quantities of pulp trays. It is applicable for manufacturing various standardized products, including egg trays, cuffee trays, and egg cartons. It is economical and efficient, easy to operate, and requires little space. By changing the molds, different types of trays can be produced. Required raw materials: Waste paper cartons, waste books, waste newspapers, book edges, recycled egg trays, and other waste paper materials.

Inquire Now

Raw Materials for Egg Tray ProductionRaw material

Paper egg tray production needs waste paper and water as raw materials. The typical paper-to-water ratio should be maintained at 1:5 or 1:6.
Various types of waste paper can be used for making egg trays, including waste cartons, waste books/newspapers/magazines, A4 paper, corrugated fiberboard, recycled egg trays, wrapping paper, and more. Any inquiries, welcome to contact Pantao Machinery – a leading egg tray machine supplier.

Process FlowProcess

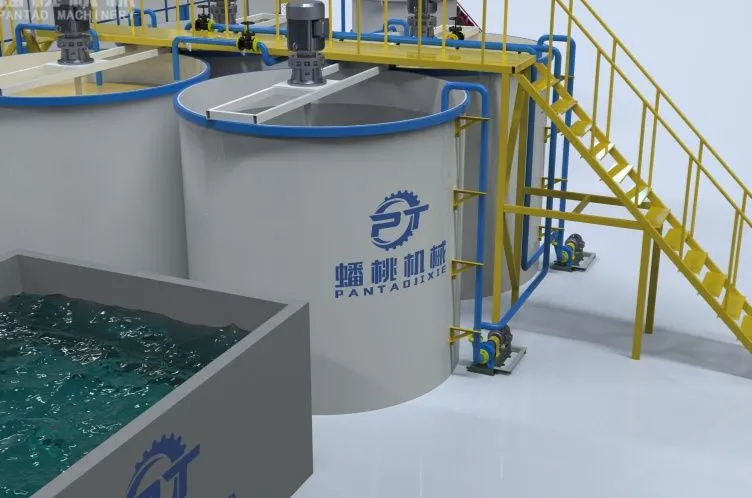

Waster Paper Pulping

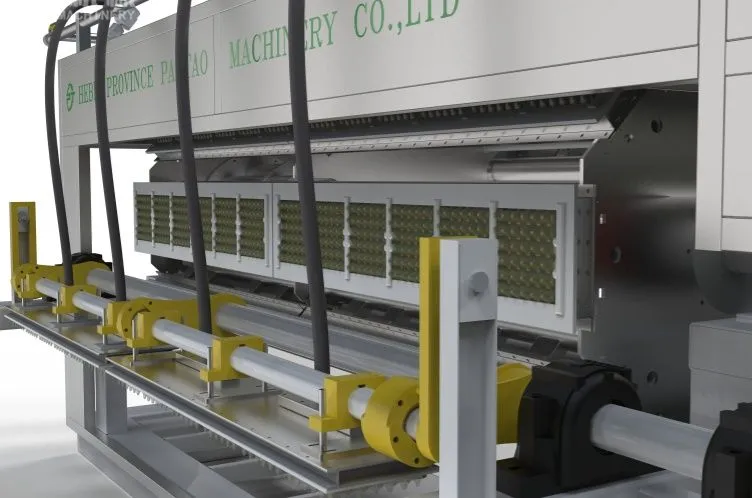

Egg Tray Molding

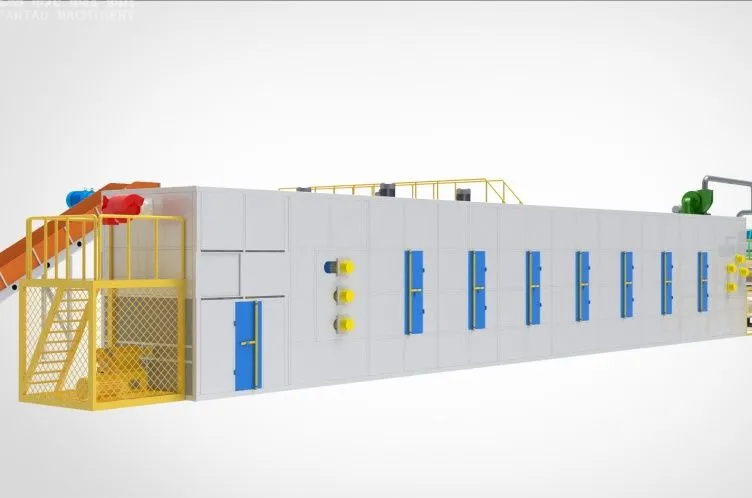

Egg Tray Drying

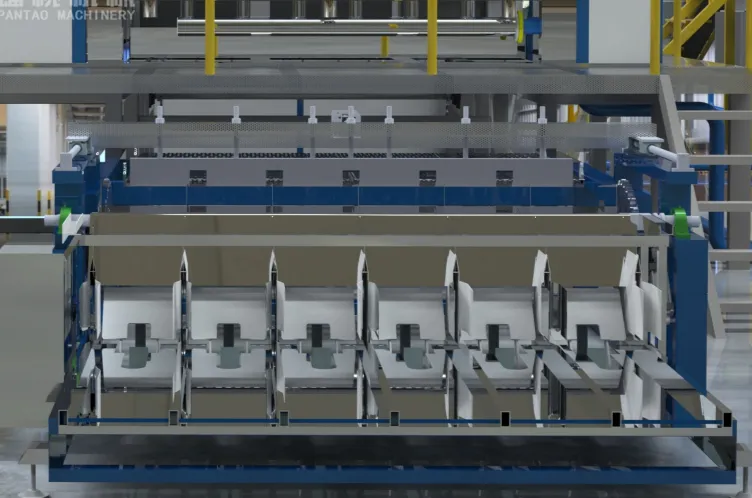

Egg Tray Packaging (Optional)

Product IntroductionIntroduction

To make different final products, just need to equip different forming molds are ok, we will do the customized design according to your requirements, the following are some samples photo for your checking:

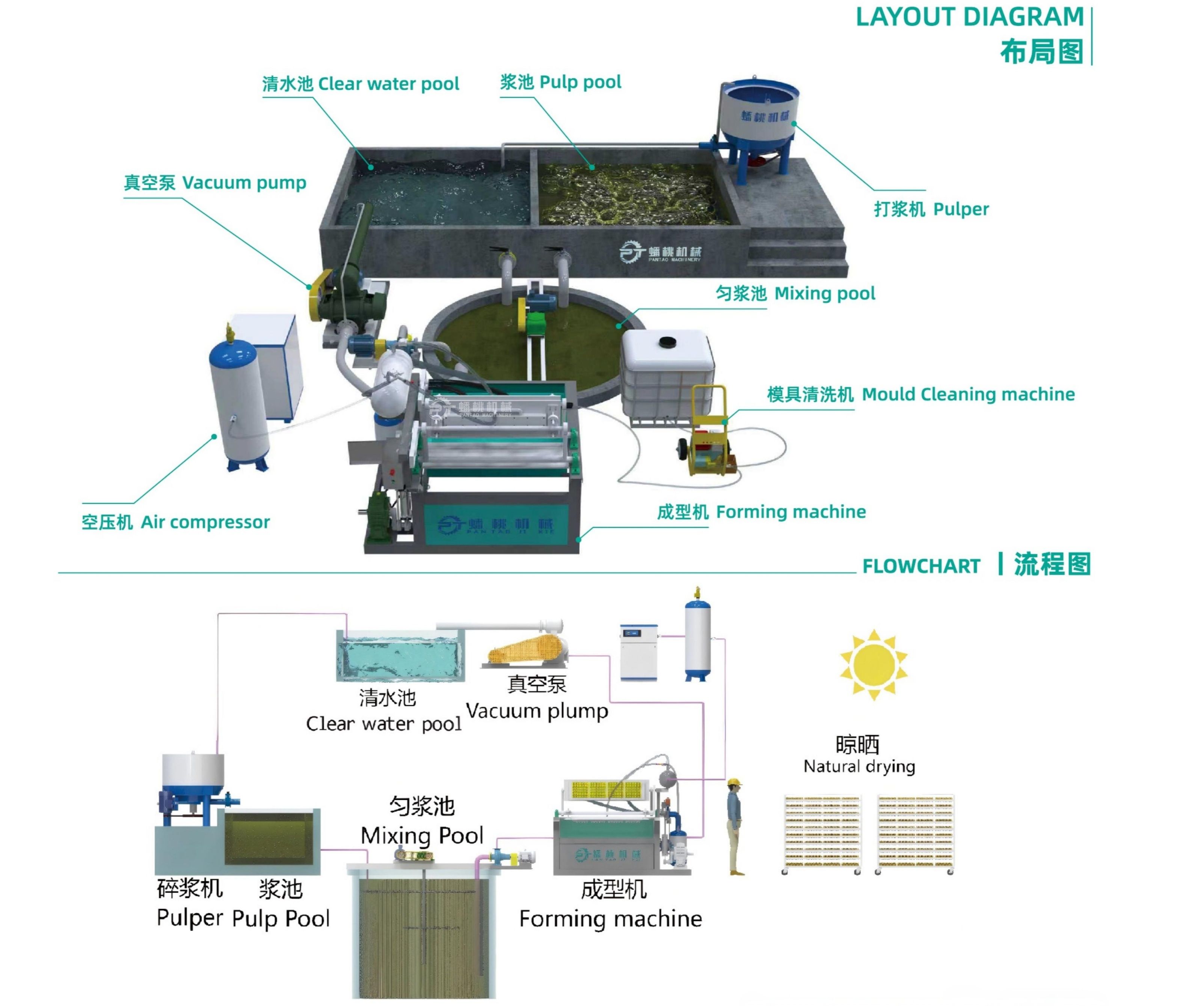

Single Side Pulp Molding Machine

Technical Parametersparameters

Model	PT-F1OOO	PT F1500	PT-F1700	PT-F2000
Forming machine	Single side machine
Mold plates	One side forming and one side transfer
Molds size	1250X410mm	1650X410mm	1950X410mm	2350X410mm
Molds qty	3 (pcs)	4 (pcs)	5 (pcs)	6 (pcs)
Forming time	5-6 times/minute
Max height	80mm
Capacity/h	800-1000	1200-1500	1600-1800	1800-2000
Capacity/day	24000	36000	43200	48000
Power	33kw	42kw	50kw	56kw
Worker	3 Person/Class	3 Person/Class	4 Person/Class	4 Person/Class
Raw material	68KG/Hour	100KG/Hour	127KG/Hour	142KG/Hour
Water	180KG/Hour	270KG/Hour	340KG/Hour	380KG/Hour
Factory size/（m）	6x10	10x10	10x15	10x15
Drying type	Sun drying/ Natural drying of the products through sunlight and natural breeze.
1. The capacity of the equipment is calculated based on the production of 30 egg trays with the size of 300*300mm and the weight of dry trays of 70g. 2. Can be customized according to customer requirements of various specifications of the equipment configuration adjustment

AdvantagesAdvantages

Rotary drum design, energy saving drive motor, low power consumption

High precision divider gearbox from Taiwan, International brand bearing, long life span

Stainless steel pulp tank, stainless steel pulp pipe, stainless steel machine cover

Aluminum forming molds can be customized as your egg tray or paper trays samples

Easy to change the forming molds, you can make different shape paper pulp packing trays by quick changing molds

4 sides, 8 sides and 12 sides rotary drum design will different production capacities are optional

Brick drying oven, single or multi-layers metal dryer oven can be matched, various heat source (thermal oil, steam, natural gas, diesel oil, coal etc)
